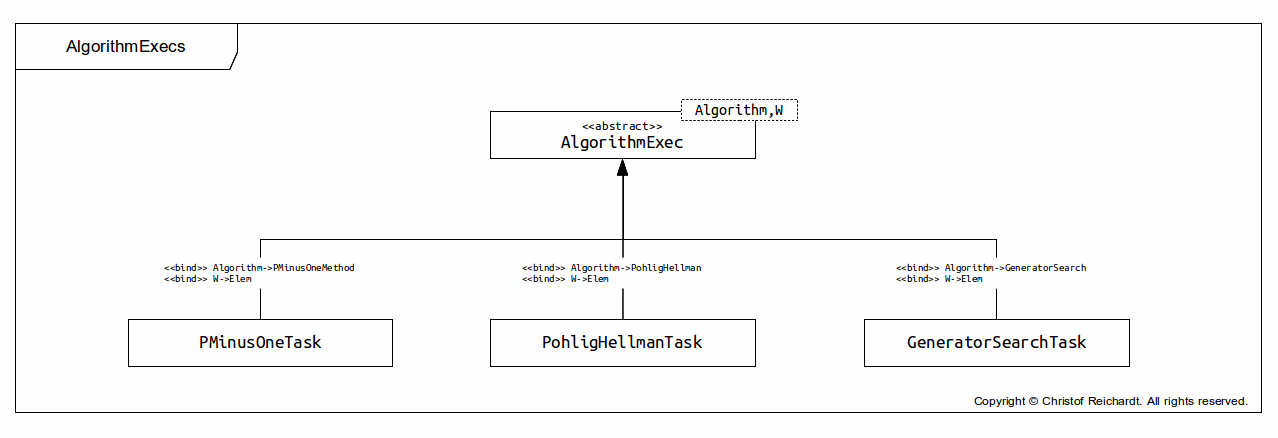

The UML Class diagrams (Infrastructure, Algorithms, Functional Decomposition and AlgorithmExecs) below illustrate the design principles of the Cryptography-Study.

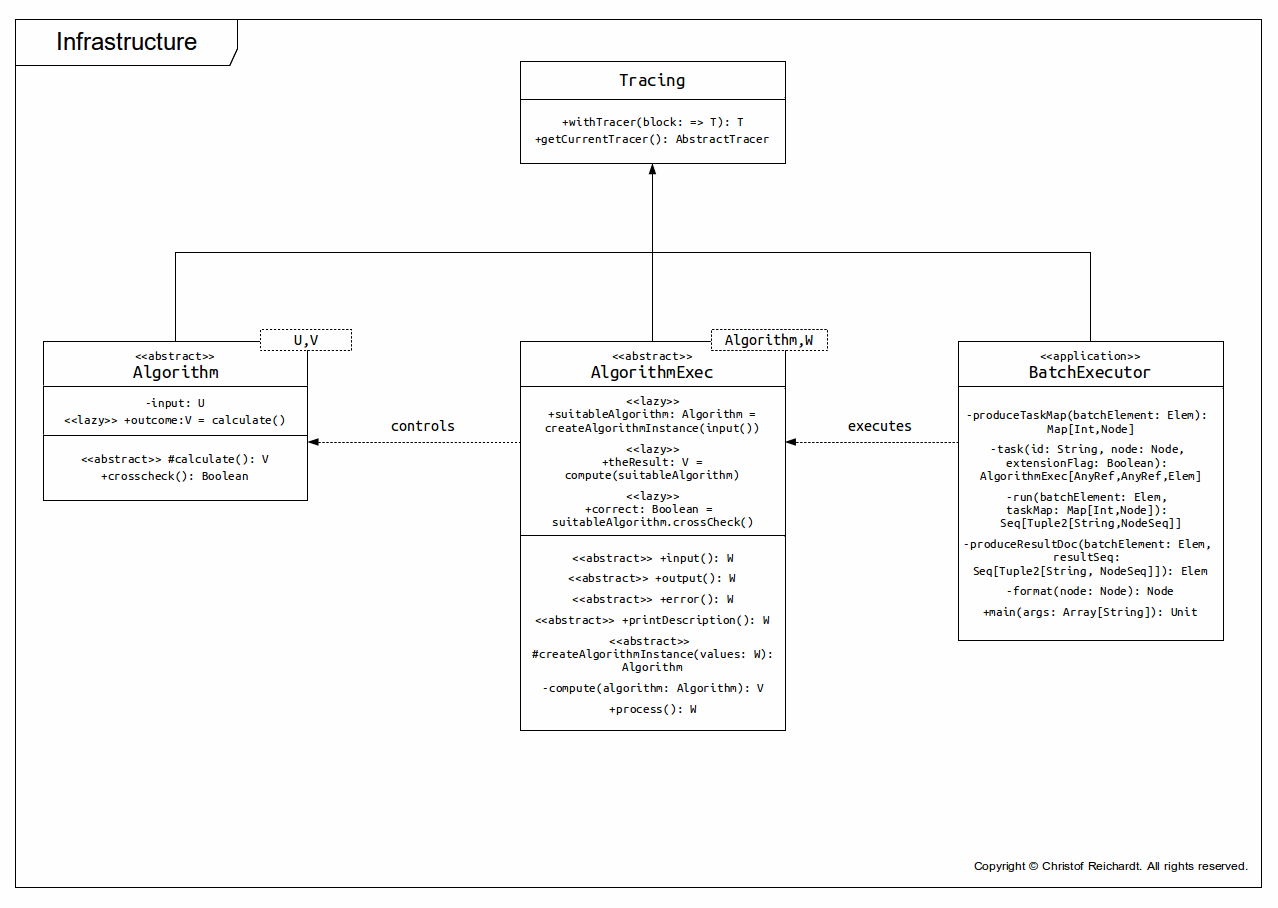

An instance of an AlgorithmExec class controls the execution of an Algorithm class. Both AlgorithmExec and Algorithm inherit from the trait Tracing. The trait Tracing provides a control structure, namely withTracer() which uses the Tracer instance given by getCurrentTracer(). By default this method returns a NullTracer which traces nothing. Several algorithm classes override this method to trace their calculations. Algorithm classes which need not any further revision may simply remove the overridden method. The execution of an Algorithm object proceeds by (1) providing a description of the algorithm (optional), (2) by reading the input parameter, (3) by instantiating an Algorithm object with the given parameter and requesting its outcome, (4) by crosschecking the result and last but not least by providing the outcome or an error message. That is, the execution of an algorithm is widely decoupled from its internal computations. By exploiting this, the BatchExecutor creates and processes several specialised AlgorithmExec instances by parsing a XML batch file. Following the completion of these AlgorithmExec instances, another XML file will be produced which contains the results of the program run.

The Algorithm class comes with two template arguments. The first template argument U is a placeholder for the input type of the algorithm and the second one stands for the output type. Furthermore concrete Algorithm classes must provide an implementation of the abstract calculate(): V method. Clients call this method not directly but may initiate the computation by requesting the lazily evaluated outcome: V value. Optionally Algorithm may override the crossCheck(): Boolean method to verify the result of the calculation.

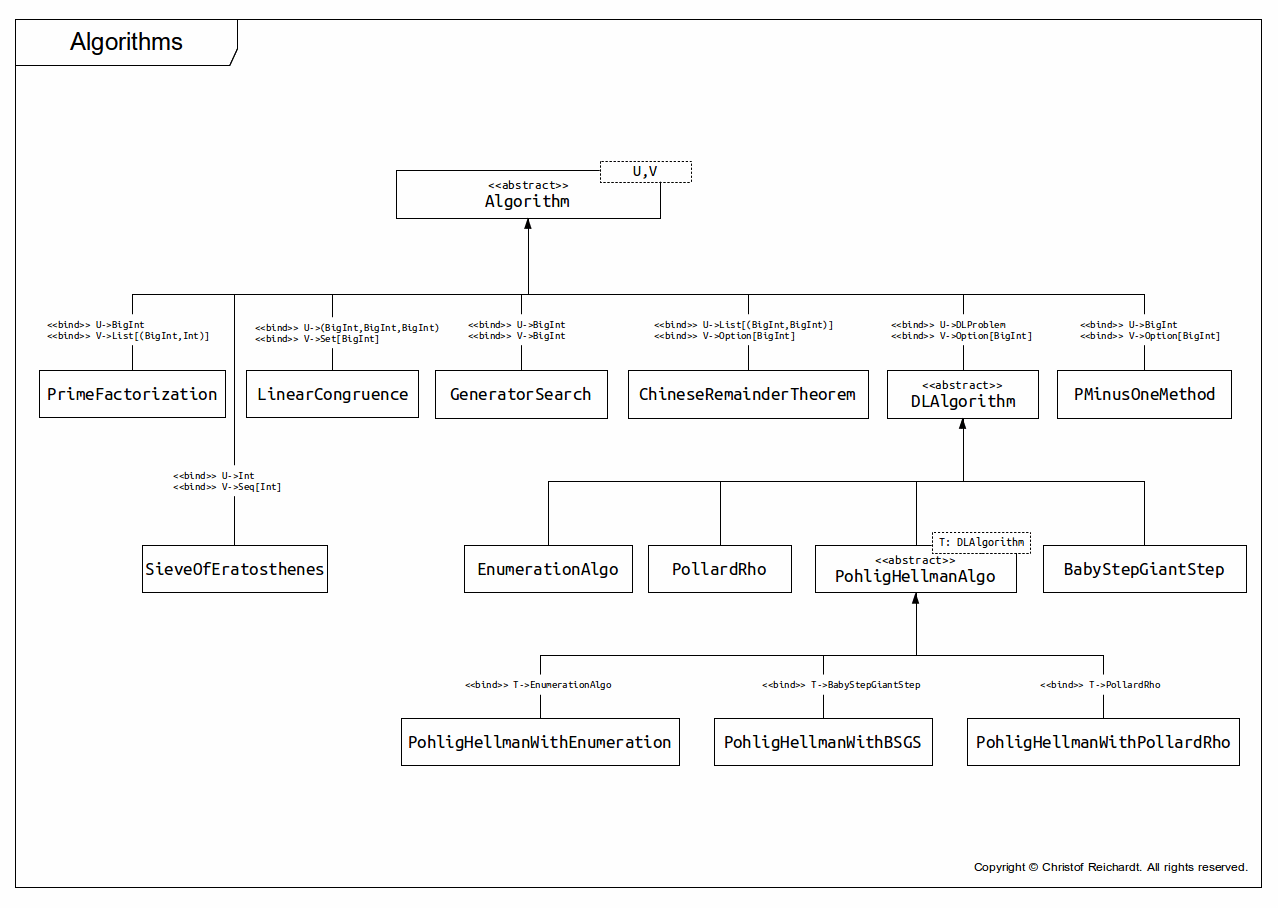

Now consider the class hierarchy below the DLAlgorithm class (see diagram Algorithms). Among the concrete classes EnumerationAlgo, PollardRho and BabyStepGiantStep the simple EnumerationAlgo has with O(n) by far the worst runtime complexity. The PohligHellmanAlgo needs one of these basic algorithms to compute the discrete logarithms within the subgroups. My implementation uses a bounded template argument to specify the type of an internal field used for this purpose. Therefore we have three incarnations of concrete PohligHellmanAlgos.

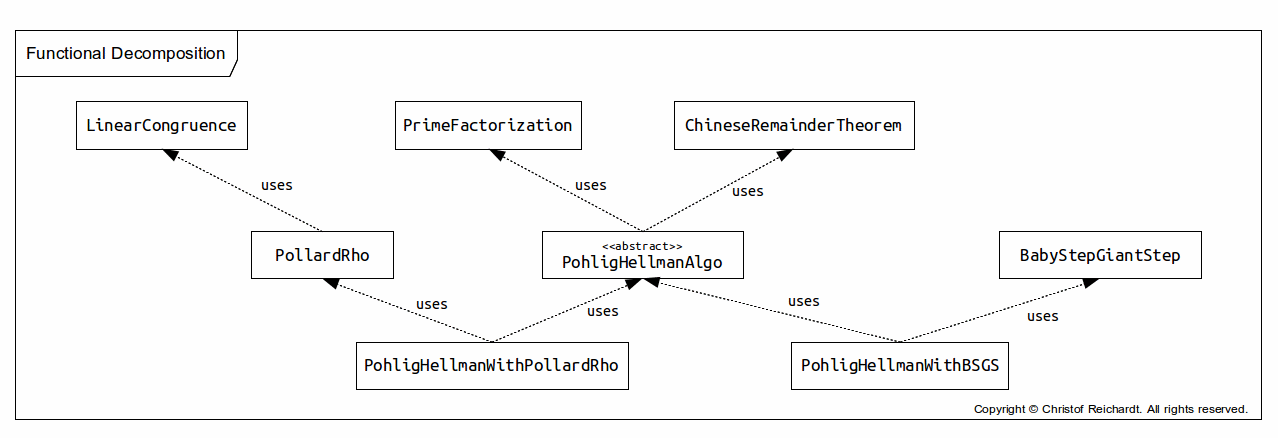

The diagram Functional Decomposition gives an overview on which actual algorithms PohligHellmanWithPollardRho and PohligHellmanWithBSGS are relying on.
